This is one of the most complete spray cap list online (to my knowledge). The second one was the Ultimate Graffiti Buyer’s Guide (offline as of 2012). The descriptions refer to caps on 94 cans; Usually this is the same except for mtn HC cans which often produce a different dot pattern.
Thanks layup for the caps!
For a can list see here.
August 2011: Several caps added. Beige Dot, NY Thin, Skinny Pro black/grey, golden cap (name unknown), Ironlak caps (Sharp Shooter, Widow Maker, Cyclone), Montana Germany caps (Level 1–6). Many descriptions added.
Differences between caps
What are the differences between different caps?
- Hardness differences. The Universal (top) produces hard edges, whereas the 94 is more center-weighed with softer edges.
- When spraying a line, the edges can be very hard (e.g. with a Universal cap on ironlak), or they can fade out and look fuzzy. The caps that produce the softest lines are usually referred to as Softcap and have blue dots.
- Caps that produce hard lines are good for outlining. For hazes and shadings, softer caps are generally preferred.
- Spraying from the same distance with a NY Thin and a NY Fat will result in a much wider dot for the NY Fat. This also defines the minimum width of a line.
- Caps which produce wide dots are called Fat Caps.
- Reaction time
- The Skinny Pro reacts quickly: When you stop spraying, the paint stops flowing. This does not necessarily need to be the case; The Super Skinny Gold, for example, continues expelling paint for half a second or so.
- Dot pattern
- The dot pattern is the pattern that is produced when spraying on a single point from medium distance. Most caps show a circle with a dot in the center (the NY Fat is a very beautiful example for this). Other caps, like the Astro Fat, rather produce rectangles with a dot in the center, and some few like the 94 cap have no outer circle at all.
- Or Quality. For some caps you can grab a handful and every cap will produce a slightly different pattern (see the video about the alternative Banana Yellow linked in its description). Others always look the same. Consistency may be important if you rely on the pattern, e.g. for visual effects.
- Some caps only work on certain cans. More precisely: Some caps only work on mtn Hardcore (only the brands in the can list have beend tested; I guess these caps work on Rustoleum as well). These are highlighted in the list below. The reason is the stem diameter; For ordinary caps it is 3.3 mm, whileas the «incompatible» caps are at 3.5 mm.
A note about temperature
Say hello to Winter
It is not just for fun that manufracturers give a minimum operating temperature. Lower temperature has several effects:
- Less pressure in the can. (See the ideal gas law from thermodynamics.) Especially for low-pressure cans this is a problem as they start clogging quickly.
- Paint dries slowly. In fact, very slowly; Some solvents take ages to evaporate.
- Evaporation takes energy. As standing in the wind after taking a bath. This reduces the surface temperature even further. A similar effect can be observed with fat caps when spraying large areas; the can cools down because the pressure sinks (again, the ideal gas law).
Therefore two hints when spraying with low-pressure cans in low temperatures:
- Thin layers only. If it takes two thin layers of paint 1 minutes each for drying, one thick layer is still wet after 10 minutes.
- Forget about thin caps. At least on the 94 can, which is made for summerly temperatures (remember – they are built in Spain). The caps clog even before you mount them on the can. Use fat caps only. Molotow cans have less problems here due to the fine pigment, high-pressure cans like the Hardcore have enough pressure.
Produce very thin lines

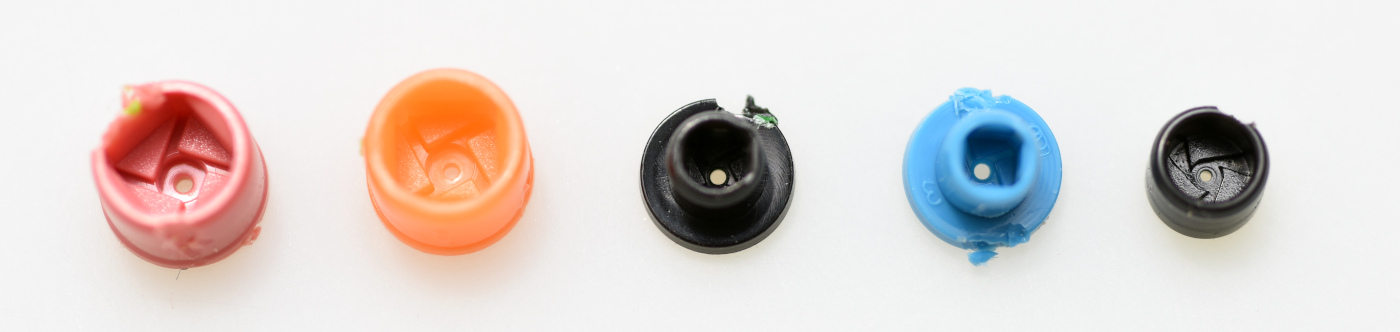

- The stem of skinny or normal caps is either a small slit or a hole. Here: Skinny Pro black
These thin or skinny caps produce fine lines and are mainly made for detail work. The disadvantage is that they clog quicker that fatter caps (especially if the can was not shaken well enough before).
- Grey Dot
aka. Super Skinny #2. Skinniest cap, allows thin lines even with sabotaz cans.
- Super Skinny gold
Not to be confused with the Outline Special Gold. This cap has a hole in the transparent stem, the Outline Special a normal slit in white plastic.
- Black Dot
- Beige dot
Sharper than Grey Dot, but with slightly higher output. Fat on Hardcore cans.
- Normal Cap
mtn Hardcore only. Very thin line even from huge distances. Also e.g. on the mtn Solvent.
Like a garden hose with centered jet of water.
General purpose, for filling and outlining
Most caps have a medium line width. The difference between them is sometimes so small that it is hardly even recognizeable.
- Banana Grey
Similar to the Banana Yellow, but works on all cans. Produces a soft dot only with a faint circle. Wider than the Banana Yellow (2–3 cm).
- Banana Yellow
Comes on mtn Hardcore cans.
Hard lines, 1–2 cm wide. The circle has about the same strength as the dot.
Banana Yellow on vimeo.
- Alternative Banana Yellow. Irregular and random dot patterns. No indent in the yellow dot (inlay).
See the Alternative Banana Yellow on vimeo.
- Banana White
Replacement cap for the Banana Yellow. Circle is less strong than Banana Yellow’s.
for molotow CoversAll cans. Are said not to clog.
Compare the sign to distinguish the Covers-All from the Pocket Cap (no dot at the tip).
- 94 Cap
For mtn 94. Lines are softer than Universal lines. See the 94 Cap on vimeo.
- NY Thin
Classic cap. Similar dot pattern as the NY Fat, and also has two output modes (circle is not visible in low output mode).
Compared to the NY Fat the NY Thin has finer ridges and the dot is not sunk in.
- Pocket Cap
e.g. on the mtn Pocket
Very fine and hard up to fat lines on a Pocket.
- Skinny Pro black/black
e.g. on the mtn Alien; Fatter than the 94 cap, but slightly faster reaction time. Slightly harder than the Skinny Pro black/grey. Thin lines are fatter at the first moment of spraying. Circle around the dot becomes wider when the cap is pressed down completely.
On mtn Hardcore: Like a NY thin (wide circle when pressed down completely).
On German Montana: Very fuzzy line.
See the Skinny Pro on vimeo.
- Skinny Pro black/grey
Also called MOLOTOW Skinny.
Rectangle/circle around the dot is always visible in contrast to the black/black where it disappears in low output mode.
On mtn Hardcore: Like a NY fat, 10 cm wide.
- Skinny Pro Grey
Partially a soft cap, but still with a strong dot. Circle is always visible. Dusty when spraying.
On mtn Hardcore: Soft and fat.
- Skinny Street black
New cap for mtn Hardcore.
- Super Skinny black
molotow cap, about twice as fat as Grey Dot
Suits on virtually every can. Quite sharp lines. See the Universal Cap on vimeo.
Ironlak’s cap. Not identical to the Universal cap.
- Sharp shooter
New Ironlak cap. Has two output modes, like a fat cap: On low it produces hard, narrow lines, on high (cap pressed down completely) the dot pattern is similar to the 94 pattern. Expels more paint however.
Not to be confused with the Level 1 cap. Sharp shooter is more transparent.
- Montana level 1
Feels like the 94 cap.
The Level x caps are new caps from the German Montana.
- Montana level 2
Same dot pattern as the 94, but a lot dustier, like the Skinny Pro Grey.
- Montana level 3
Feels like the 94 cap as well, but with higher output.
- No idea what this is, please tell me.
Makes thin to fat lines (two output modes like a fat cap), width 1–5 cm.
Sharp lines? Fotget about this
For stencils, highlights, and other effects
- Softcap grey triangle
Highest output of all blue dots. Strong center and very dusty.
- Softcap grey round
Produces regular dot patterns and soft fadings. Shading is possible without the dot being visible.
See this Softcap on vimeo.
- Softcap white
On Molotow Premium
Least dusty and softest of all blue dots. Dot pattern shows a soft hexagon.
- Outline Special Gold
No idea why it is called outline. Ideal if you want to have your spray paint atomized in the air, not on the wall. Air humidifiers will work perfectly with this cap.
- Fatcap stems have a much wider slit than skinny caps. Here: Pink dot black
Ideal for filling large areas.
Most fat caps have two «modes» and produce a narrow line when only pressed down carefully (low output mode) and a wider one when pressed down completely (high output mode). But not all – Ironlak’s NY Fat has no difference.
See Pink Dot, Astro Fat, and Silver Super Fat on vimeo.
- Astro Fat
Very clean cap, does not drip. Strong circle (therefore not ideal for haze effects). Sharp lines in low output mode.
Ideal for filling large areas due to the high output.
- Pink Dot white
Produces a pentagon dot pattern with a strong center (not for filling). Medium output and narrow line (for a fat cap) also at larger distance to the wall. No big difference between low/high output mode.
This cap proved ideal for soft gradients.
- Pink Dot black
High output. Irregular dot pattern, but very clean gradient for shadow effects.
Fuzzy line with some larger sparkles in low output mode. High output mode good for haze effects.
- NY Fat Ironlak
Center only, no circle, kind of a fat 94 cap. Medium output. No difference between low/high output. Produces fuzzy lines.
- NY Fat
aka. New York Fat.
Lightest fat cap here. Strong center on the 94 can.
See the NY Fat on vimeo.
- Rusto Fat
From Rustoleum. See the Rusto Fat on vimeo.
Sometimes irregular dot pattern, but produces sharp lines when working close to the wall. (Not really useful otherwise.)
- Super Fat silver
High output. Square dot pattern. Only small difference between low/high output mode.
- Sabotaz Ultra Fat
Wide, irregular circle around the dot. Sounds like an Astro Fat and can be controlled quite well.
Unfortunately it drips like hell and demonstrates that making your own cap is not as easy as it sounds.
- Montana level 4
The circle is nearly invisible, mainly produces a hard, large dot.
- Montana level 5
Like a fat 94 cap in low output mode, in high output mode the circle becomes visible.
- Montana level 6
High output with a wide circle
- Widow maker
Good for soft shadows. Low output mode: Only a soft dot without a circle. High output mode: Circle becomes visible, but is still weak compared to the dot.
Not to be confused with the Pink Dot black.
High output. This cap is only on or off and drips a bit. Low output mode is hard to achieve.
The hexagon around the dot is strong and relatively close to the dot.
Because they are different
Calligraphy caps produce a pattern that is much higher than wide – like a calligraphy pen.
The stencil cap is for very thin lines. Absolutely use a thin outline cap on it since the rest of the paint will just be kept back by the stencil cap. With a fat cap you will have a sea of paint there in no time.
Needle Caps are good for … what? They expel too much paint for working closely, and the line looks like paint splashed on the wall otherwise.
- Flat-Jet Artist black/yellow
aka. Black Calligraphy
- Flat-Jet Artist red
aka. Red Calligraphy
- Needle Cap red
- Needle Skinny
Needs an additional cap inside
aka. White Calligraphy. See the Transversal on vimeo.
- Mixing cap
Connects two cans with a pipe, for mixing paint to get new colours.
References and more:
- ^ Annotation: I often work with mtn 94. They are quite consistent; however, a low percentage (perhaps two amongst 100) are «bad». One cap I recently had produced a pattern similar to the one from a calligraphy cap.
- ^ On cans like the 94, ironlaks, etc. the hole only accepts stem diameters of 3.5 mm. Hardcore cans have larger holes, which might also be the reason why they sometimes leak with the normal caps.
